RelAir R2M

Wireless M-Bus to M-Bus gateway for more than 60 meters.

RelAir R2M Home | Relay Australia | M-Bus | Automation Industries
  • Wireless M-Bus according to EN 13757-4 Mode S, T und C

  • Frequency 868 MHz

  • OMS conform and compatible (Spec 4.X.X)

  • Optional encryption Mode 5 or 7, AES

  • Power supply via M-Bus (5 unit loads) or USB

  • Whitelist with up to 63 meters configurable

  • Configuration with free Software via M-Bus or USB

  • Internal antenna, optional external antenne (only Pro-Version)

  • 2 housing variations Home, Professional

RelAir R2M Pro | Relay Australia | M-Bus | Automation Industries

The RelAir R2M allows you to integrate up to 63 Wireless M-Bus meters into your existing M-Bus installation. For this purpose the OMS-compliant gateway stores the meterdata and answers a request by the M-Bus master with the last answer telegram. Because of the configurable whitelist it is of course possible to run several RelAir R2M in one M-Bus network. Due to the integrated mini USB interface the RelAir R2M can also be used as a full operational Wireless M-Bus Master. Our new gateway works without an external power supply and is either powerd from the M-Bus (5 unit loads) or via the USB interface.

RelAire R2M Flow | Relay Australia | M-Bus | Automation Industries

Technical Data

Standard

EN13757-4, EN13757-3 and EN13757-2, compatible to OMS

Transmission Mode

Receive Modes

S1,T1,C1 (unidirectional) / Frame Format A and B

Encryption

Mode 0 (no encryption), Mode 5 or Mode 7

Transmission Interval

Battery Lifetime

(2400 mAh, soldered, not changeable)

Pulse inputs

Contact voltage

Contact current

Cable pulse generator

Debouncing time

Potential

Resistance

Contact Duration

Pulse frequency

Radio Scan List

up to 488 devices

White List

up to 63 devices, can be configured

Power supply

from M-Bus (5 unit loads)
or operation via USB (max.90mA)

Temperature range

0 to 55°C

Dimensions

Humidity

10% to 70% (not condensing)

Mounting

Wall mounting

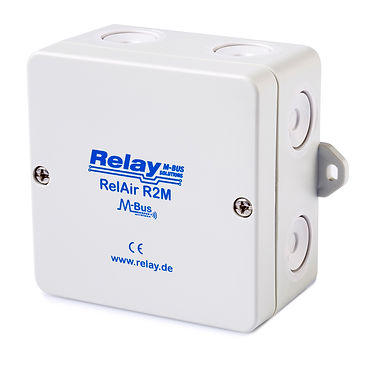

HOUSING RELAIR R2M PRO

Materials

Polystyrene, light grey

H X W X D

93 x 93 x 55 mm

Protection Class

IP54, IP65 is possible if the cable entry is done carefully

HOUSING RELAIR R2M HOME

Mounting

Wall mounting or mounting on an in-wall box (60mm)

Materials

ABS, white

H X W X D

80 x 80 x 25

Protection Class

IP40

Order Information

Order Number

Description

RelAir R2M HOME

Wireless M-Bus to M-Bus Gateway, housing for living rooms, internal antenna

RelAir R2M PRO

Wireless M-Bus to M-Bus Gateway, industrial housing, internal antenna

RelAir R2M PROX

Wireless M-Bus to M-Bus Gateway, industrial housing, external antenna

KA004

USB-cable A to mini B 5-pin, length = 1,8 m
